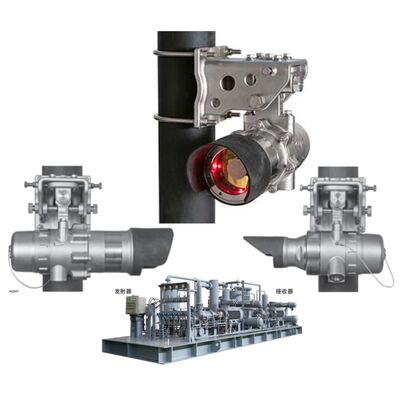

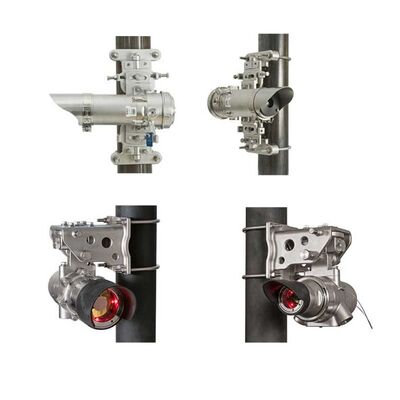

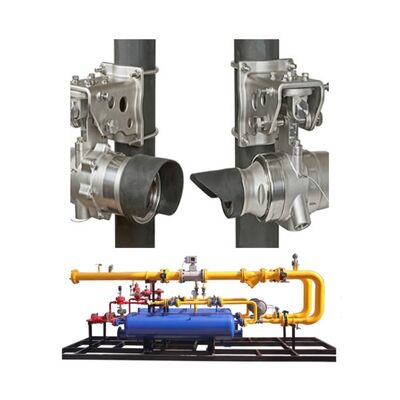

DET-TRONICS FlexSight LS2000 Stainless Steel Open Path Infrared Gas Detector with 200 m Detection Path and Heated Optics

The FlexSight LS2000 from DET-TRONICS is an open-path IR gas detector that monitors large areas for hydrocarbon gas clouds. The transmitter sends an infrared beam to the receiver up to 200 m away. It is built for harsh outdoor environments and provides fast response for leak detection in high-risk zones. The system is used extensively in upstream and midstream oil & gas.

• 200 m detection path length
• Heated optics resist fog, rain, and ice
• Automatic optical path compensation
• Built-in laser for easy alignment
• Fault diagnostics with relay output
• Stainless steel construction
• High resistance to sunlight interference

• Path Length: 5 to 200 m (16 to 656 ft)
• Detection Principle: Dual-wavelength IR
• Response Time: ≤3 seconds
• Operating Temperature: -55 °C to +75 °C
• Power: 24 VDC (18–32 VDC), 11 W transmitter / 7 W receiver
• Output: 4–20 mA, HART, Modbus, relays
• Enclosure: 316 stainless steel
• Protection: IP66 / NEMA 4X
• Certifications: FM, CSA, ATEX, IECEx

• Perimeter monitoring in oil & gas
• Tank farm and pipeline leak detection
• Offshore platform safety
• Compressor station monitoring
• Large open hazardous areas
