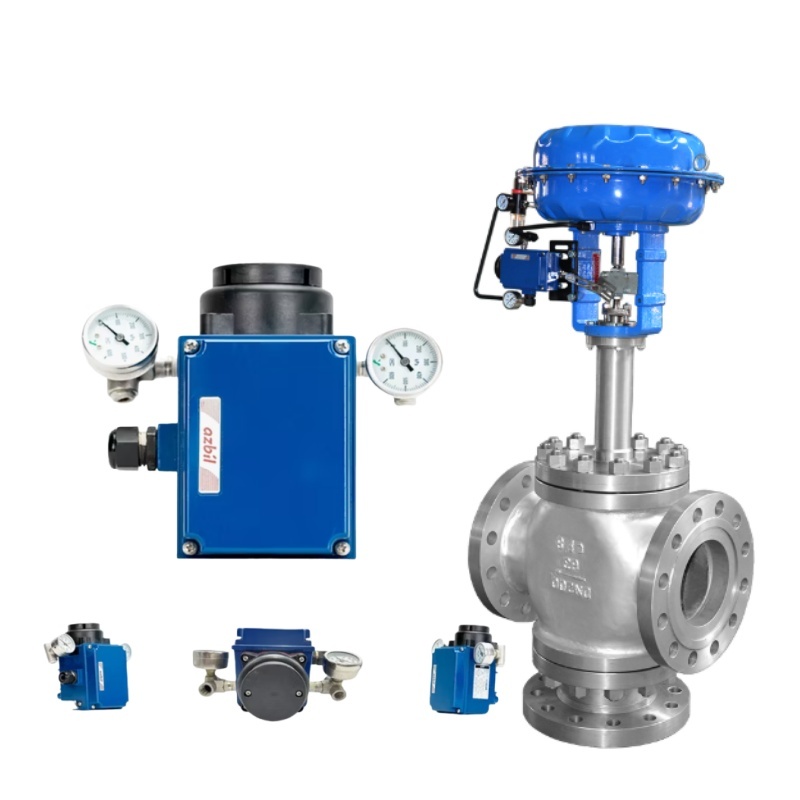

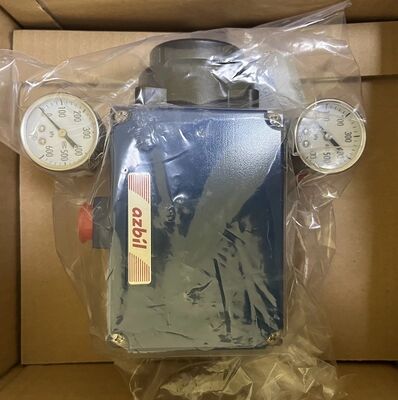

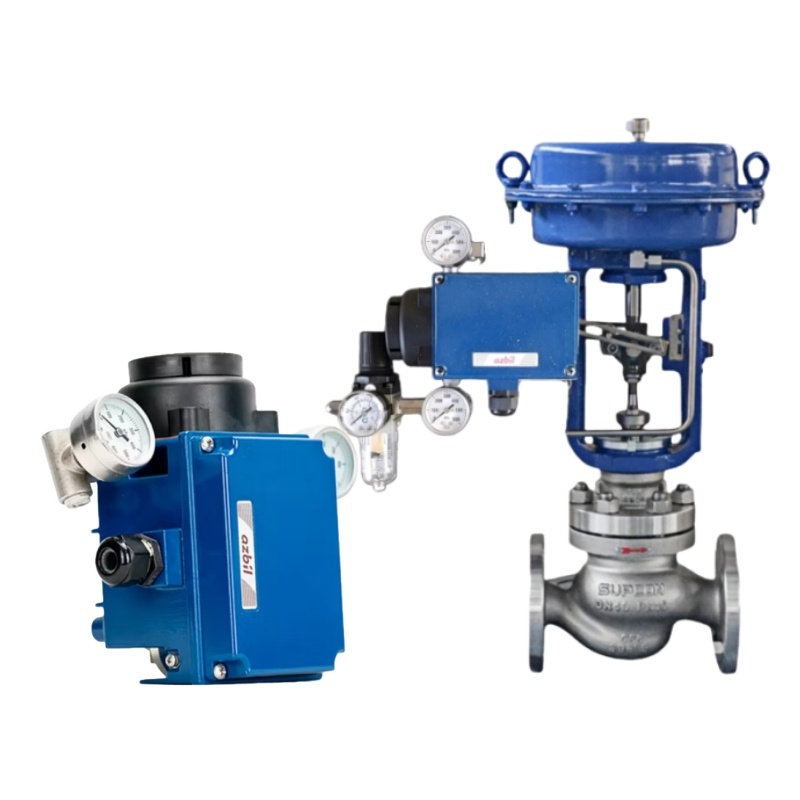

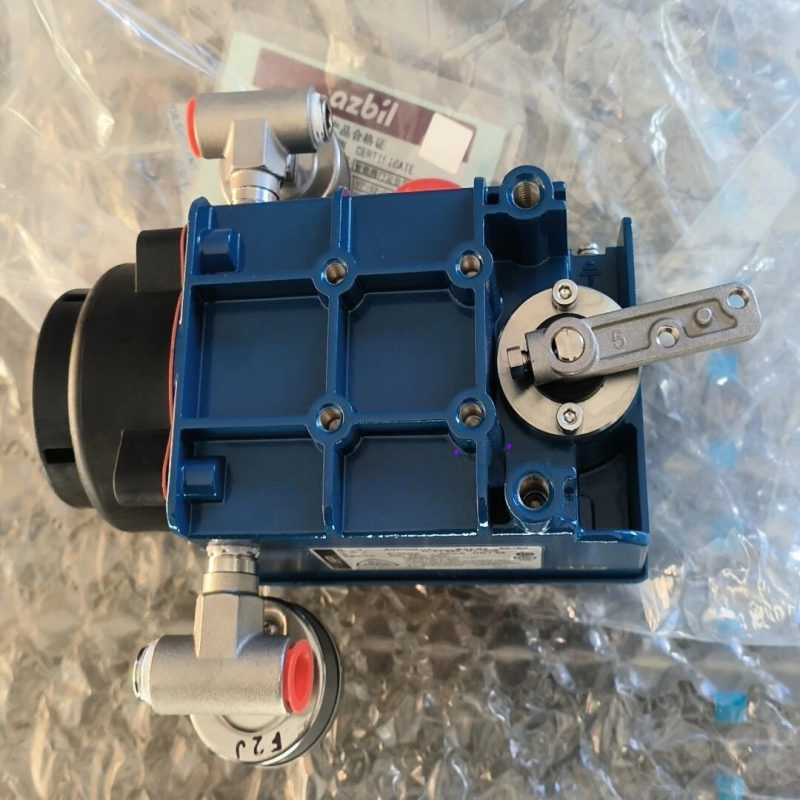

Process Control Actuator Azbil AVP100 AVP102 Intelligent Digital Valve Positioner with HART

The Azbil AVP102 is a digital smart positioner for pneumatic actuators in process control. It receives 4-20 mA signals, communicates via HART, and provides accurate valve positioning with built-in diagnostics. It is a cost-effective, reliable choice for plants that want smart control without complexity.

• One-button auto-setup and tuning
• HART 7 protocol support
• Very low air consumption
• Local display and pushbutton interface
• Fail-safe and tight-shut capability
• Vibration-resistant construction
• Simple mounting on linear/rotary actuators

• Input Signal: 4-20 mA DC
• Communication: HART 7
• Supply Pressure: 0.14–0.7 MPa (20–100 psi)
• Air Consumption: 0.2 NL/min or less
• Stroke Range: Linear 10–150 mm, rotary 60–100°
• Accuracy: Linearity ±0.5% F.S., Hysteresis ±0.5% F.S.
• Ambient Temperature: –40 to +80 °C
• Enclosure: IP66 / NEMA 4X

• Pneumatic control valves in process industries
• Chemical and oil & gas plants
• Power plant control loops
• General throttling applications
