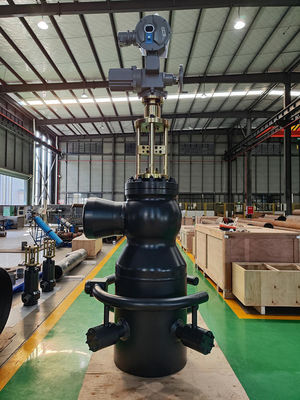

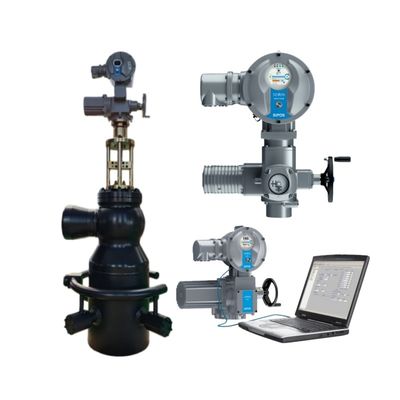

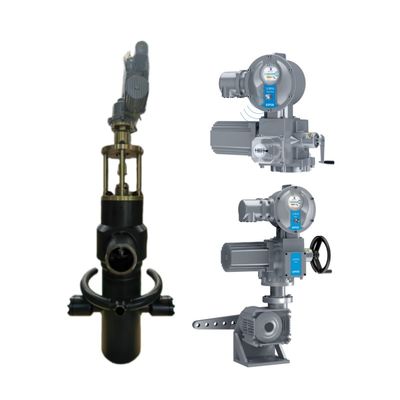

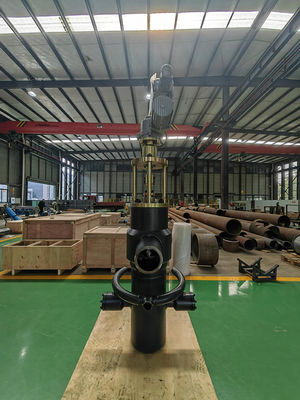

Bypass Valve with SIPOS 7 Electric Valve Actuator
Product Overview
The Bypass Valve with SIPOS 7 Electric Actuator is a smart automation solution for critical bypass applications, integrating a high-performance valve with the intelligent SIPOS 7 actuator. Equipped with predictive diagnostics, soft start/stop, and a high-resolution color display, it offers real-time monitoring of torque, position, and motor temperature. The actuator’s frequency-controlled drive ensures gentle valve operation, reducing wear and cavitation. With native support for Profibus DP, Modbus, and Ethernet/IP, it enables Industry 4.0 connectivity. Perfect for power generation, desalination, and chemical plants requiring fail-safe, energy-efficient flow control with minimal downtime.
Key Features
- Predictive Diagnostics: Torque and vibration monitoring.
- Soft Positioning: Frequency control prevents water hammer.
- Color Graphic Display: Intuitive local interface.
- Industry 4.0 Ready: Ethernet/IP, Profinet options.
- Fail-Safe ESD: Battery or capacitor backup.
- Energy Efficient: Up to 50% power savings vs. fixed speed.
- IP68 Sealed: Suitable for buried or flooded installation.
- Custom Valve Integration: Pre-engineered assemblies.
Technical Specifications
| Parameter |
Specification |
| Actuator |
SIPOS 7 Flash / Eco |
| Torque |
50 to 25,000 Nm |
| Positioning Resolution |
0.1% (12-bit encoder) |
| Speed Control |
Frequency inverter (0.1–100%) |
| Power |
3-phase 380–480 VAC |
| Communication |
Profibus DP, Modbus, Ethernet/IP |
| Protection |
IP68 |
| Ambient Temperature |
-30°C to +70°C |
| Valve DN |
50 to 1200 mm |
| Safety |
SIL 2, ATEX Zone 1/21 |
Applications
- Power Generation: Steam turbine bypass systems.
- Desalination: High-pressure pump recirculation.
- Chemical Plants: Reactor pressure relief bypass.
- District Cooling: Chilled water flow balancing.
- Oil Refineries: Product rundown line control.
Frequently Asked Questions
Does it have predictive maintenance?
Yes, monitors torque, vibration, and temperature trends.
Can it connect to Ethernet?
Yes, with Ethernet/IP or Profinet modules.
Is fail-safe operation included?
Yes, with optional battery/capacitor ESD.
Does it reduce water hammer?
Yes, soft start/stop via speed control.
Is it suitable for buried service?
Yes, IP68 rated for permanent submersion.
Contact Us
Contact our team for inquiries about the Bypass Valve with SIPOS 7, pricing, or to schedule a demo:
- Email: mashaliang@gbsxj.com
- Phone: +8613472860702
