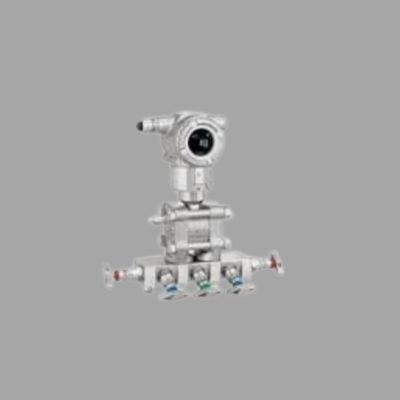

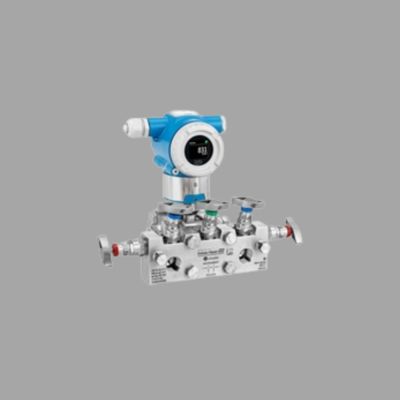

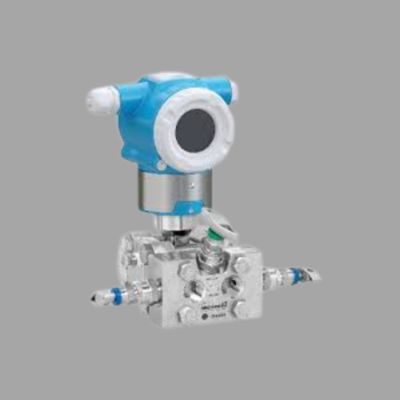

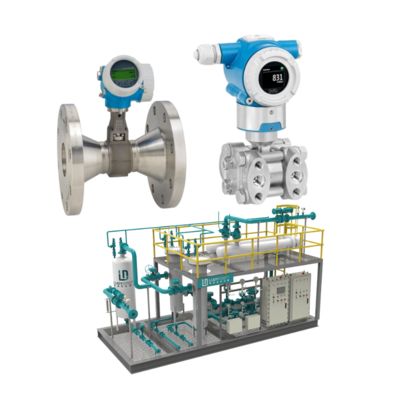

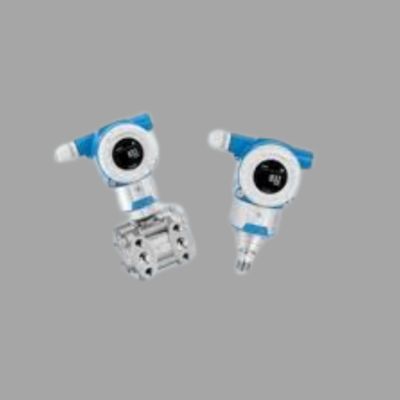

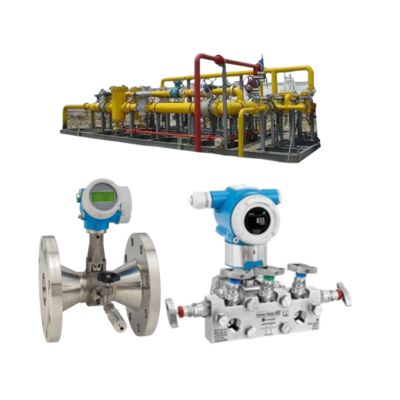

Pressure/flow control unit with Endress+Hauser Proline Prowirl R 200 flowmeter and Deltabar PMD50 differential pressure transmitter.

1
MOQ
1095$-1795$
Preis
Pressure/flow control unit with Endress+Hauser Proline Prowirl R 200 flowmeter and Deltabar PMD50 differential pressure transmitter.
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Power Consumption: ≤8W
Mounting: Flanges, Threads, Various Antennae
Test Hole: 4 Holes
Rated Temperature: -40~200℃
Communication Interface: Depends On Specific Instrument
Leakage Rating: ANSI Class IV-VI
Temperature Accuracy: ±0.5 OC
Display Type: LCD Or LED Display
Hervorheben:

Proline Prowirl R 200 flowmeter

,

Deltabar PMD50 pressure transmitter

,

industrial flow control unit

Grundinformation
Place of Origin: Shanghai
Markenname: Endress+Hauser
Zertifizierung: QC
Model Number: Deltabar PMD50
Zahlung und Versand AGB
Packaging Details: Wooden Box/Carton Box
Delivery Time: 8 Weeks
Payment Terms: EXW
Supply Ability: 300PCS/Month
Produkt-Beschreibung

Endress+Hauser Deltabar PMD50: Differential Pressure Transmitter for Process Applications

The Endress+Hauser Deltabar PMD50 is a robust and versatile differential pressure transmitter designed for precise measurement of pressure differences in demanding industrial processes. As part of Endress+Hauser’s Deltabar series, this transmitter combines reliability, ease of use, and advanced functionality to address applications such as level, flow, and differential pressure monitoring in industries including chemical, oil and gas, water treatment, and food and beverage.

Core Technology and Measurement Principle

The Deltabar PMD50 employs a metal diaphragm sensor (typically based on strain gauge or capacitive technology) to measure differential pressure. The sensor consists of two isolated process diaphragms that transmit pressure via a fill fluid to a sensing element. When differential pressure is applied, the sensing element detects the displacement or strain and converts it into an electrical signal. This design ensures high accuracy and stability while protecting the sensor from harsh media. The transmitter is available with various diaphragm materials (e.g., stainless steel, Hastelloy, or tantalum) to handle corrosive or abrasive fluids.

Category Details
Product Name Endress+Hauser Deltabar PMD50
Type Differential Pressure Transmitter for Process Applications
Core Technology Metal diaphragm sensor (strain gauge or capacitive technology); pressure transmitted via fill fluid to sensing element
Measurement Principle Differential pressure displaces diaphragm → converted into electrical signal
Accuracy Up to ±0.5% of measured value
Stability Excellent long-term stability, minimal drift
Diaphragm Materials Stainless steel, Hastelloy, Tantalum
Safety Certifications ATEX, IECEx (hazardous areas), SIL 2 (if applicable)
User Interface Local display, push-button configuration, HART communication for integration and remote setup
Design & Protection Compact design, IP67 housing, corrosion-resistant materials
Operating Conditions Handles overpressure, static pressure, and temperature fluctuations (standard industrial ranges)
Application Flexibility - Level: Hydrostatic tank and vessel measurement - Flow: DP across orifice plates, venturi tubes - Filter/Pump: Clogging detection, pressure drop monitoring
Key Advantages Robust design, easy to use, reliable in harsh environments, flexible installation
Applications - Chemical processing (reactor level, filter monitoring) - Water & wastewater (pipeline flow, tank level) - Oil & gas (separator/compressor monitoring) - Food & beverage (CIP hygienic applications)
Conclusion A cost-effective, versatile DP transmitter offering reliable measurement, ease of use, and durability for standard industrial processes.
Key Features and Advantages
  1. High Accuracy and Reliability:
    The PMD50 offers accuracy up to ±0.5% of the measured value, with excellent long-term stability and minimal drift. Its robust construction and advanced signal processing ensure reliable performance in varying process conditions.

  2. User-Friendly Design:
    The transmitter features a simple, intuitive interface with a local display and push-button configuration. It supports HART communication for easy integration with control systems and remote parameterization. The compact design allows for flexible installation in space-limited areas.

  3. Safety and Certifications:
    The device complies with international standards and carries certifications for hazardous areas (ATEX, IECEx) and industrial safety (SIL 2 if applicable). It is designed to withstand overpressure and temperature fluctuations, making it suitable for challenging environments.

  4. Application Flexibility:
    The PMD50 is suitable for a wide range of applications, including:

    • Level measurement in tanks and vessels (e.g., using hydrostatic pressure principles).

    • Flow measurement via differential pressure across primary elements (e.g., orifice plates, venturi tubes).

    • Filter and pump monitoring to detect clogging or pressure drops.

  5. Durability and Protection:
    With an IP67-rated housing and corrosion-resistant materials, the transmitter operates reliably in wet, dusty, or corrosive environments. It handles high static pressures and temperatures within industry-standard ranges.

Applications
  • Chemical Processing: Monitoring reactor levels and filter pressures.

  • Water and Wastewater: Flow measurement in pipelines and level detection in storage tanks.

  • Oil and Gas: Differential pressure monitoring in separators and compressors.

  • Food and Beverage: Hygienic applications with clean-in-place (CIP) compatibility.

Conclusion

The Deltabar PMD50 is a cost-effective and reliable solution for differential pressure measurement in standard industrial processes. Its balance of accuracy, durability, and ease of use makes it ideal for users seeking a versatile transmitter without the complexity of premium models. Whether for level, flow, or pressure applications, the PMD50 delivers consistent performance and reduces total cost of ownership through low maintenance and long service life.
