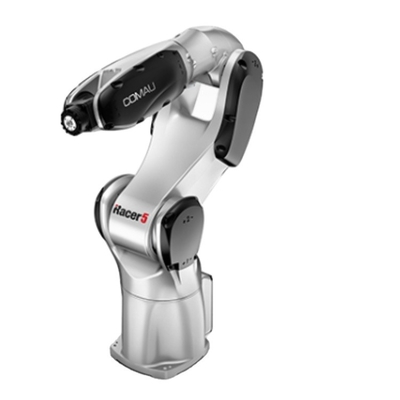

Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot

Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot

Herkunftsort:

China

Markenname:

Comau

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat
Produkt-Details
Anwendbare Industrien:
Hotels, Kleidergeschäfte, Baumaterial-Geschäfte, Maschinerie-Reparaturwerkstätten, Produktionsanlage
Ausstellungsraum-Standort:
Kanada, Italien, Frankreich, Deutschland, Vietnam, Brasilien, Mexiko, Spanien, Kolumbien
Videoabgehendinspektion:
Zur Verfügung gestellt
Maschinerie-Prüfbericht:
Zur Verfügung gestellt
Vermarktende Art:
Neues Produkt 2020
Garantie von Kernkomponenten:
1-jährig
Kern-Komponenten:
Motor
Gewicht:
32 kg
Garantie:
1-jährig
Gewicht (Kilogramm):
32 kg
Zahl von Äxten:
6
Maximale Handgelenknutzlast (Kilogramm):
5 Kilogramm
Maximale horizontale Reichweite (Millimeter):
809 Millimeter
Wiederholbarkeit (Millimeter):
0,03 Millimeter
Werkzeugbefestigungsflansch:
ISO 9409-1-A25
Robotergewicht (Kilogramm):
32 kg
Schutzklasse:
IP54
Montageposition:
Boden/Decke/Wand
Drehmoment auf Achse 6 (Nanometer):
4,91 Nanometer
Anschlag (Geschwindigkeit) auf Achse 6:
+/- 2700° (800°/s)
Hafen:
Shanghai
Produkt-Beschreibung
Product Description
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 0
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 1
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 2
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 3
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 4
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 5
Specification
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location
Canada, Italy, France, Germany, Viet Nam, Brazil, Mexico, Spain, Colombia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
Motor
Place of Origin
China
Brand Name
Comau
Weight
32kg
Warranty
1 Year
Weight (KG)
32kg
Number of axes
6
Maximum wrist payload (Kg)
5 kg
Maximum horizontal reach (mm)
809 mm
Repeatability (mm)
0.03 mm
Tool coupling flange
ISO 9409-1-A25
Robot weight (Kg)
32 kg
Protection class
IP54
Mounting position
Floor / Ceiling / Wall
Torque on axis 6 (Nm)
4.91 Nm
Stroke (Speed) on Axis 6
+/- 2700° (800°/s)
Packing & Delivery
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
Company Profile
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 6
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 7
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 8
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 9
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 10
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 11
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 12
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 13
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 14

FAQ


Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).

Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 15
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 16
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 17
Universal Robotic Arm 6 Axis Racer-5-0.80 Payload 5kg For Assembly Robot As Industrial Robot 18
